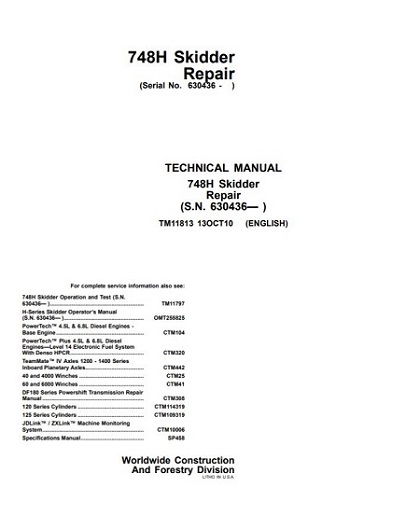

John Deere 748H Skidder Repair Technical Manual

Description

This Technical Manual is for the John Deere 748H Skidder, at over 404 pages This is the same manual that the dealer repair shops use! It contains hundreds of pictures and diagrams containing all the information you need to repair and troubleshoot your Skidder.

Size:31 MB
Language: English
Format :PDF
Necessities: SumatraPDF or Adobe Reader
Compatible OS: Windows/Mac/Tablet/IOS /Android

table of Contents：
Section 00—General Information
Section 01—Wheels
Section 02—Axles
Section 03—Transmission
Section 04—Engine
Section 05—Engine Auxiliary Systems
Section 07—Dampener Drive
Section 09—Steering System
Section 10—Service Brakes
Section 11—Park Brake
Section 17—Frame, Chassis, or Supporting Structures
Section 18—Operator’s Station
Section 19—Sheet Metal and Styling
Section 20—Safety, Convenience, and Miscellaneous
Section 21—Main Hydraulic System
Section 30—Winch
Section 32—Stacking Blades
Section 38—Grapple
Section 99—Dealer Fabricated Tools
